特点 Features

1,负载大,切换功率大 Heavy load,suitable for heavy power reverse.
2,体积小,可用于高密度安装 Small size,suitable for high-density mounting.
3,用于电视遥控器,复印机,售货机和空调机.
Suitable for remote control TV set,copy machine,sales machine and air conditioner etc.

订货信息 Ordering information

CRST36F--C-S-DC12V-L
    1    2 3   4  5

1,型号 Part number: CRST36F     2,触点形式 Contact arrangement  A:1A;C:1C
3,封装形式:S:试水式;无:防尘式   Enclosure: S:Sealed type; Z:Dust cover
4,线圈额定电压 Coil Rated voltage(V):DC:5,6,9,12,24,48
5,线圈功耗Coil power consumption: 无Nil 0.53W; L:0.25W

触点数据 Contact data

触点形式 Contact Arrangement

1A(SPST NO)   1C(1Z)(SPDT)

触点材料 Contact Material

AgSnO₂    AgCdO

触点负载(阻性) Conatct Rating(Resistive)

10A/250VAC;30VDC

最大切换功率Max.Switching Power

330W    2500VA

最大切换电压 Max.Switching Voltage

30VDC  277VAC 最大切换电流Max.Switching Current:10A

触点阻性或压降 Contact Resistance or Voltage Drop

≤100mΩ

寿命 Operation Life

电气 Electrical

10⁵

机械 Mechanical

10⁷

线圈参数 Coil Parameter

线圈电压
Coil voltage
(VDC)

线圈电阻
Coil Resistance
Ω±10%

吸合电压VDC(最大)
Pick up Voltage VDC(Max)
(额定电压的75%)
(75% of rated voltage)

释放电压VDC
Release voltage VDC(Min)
(额定电压的5%)
(5% of rated voltage)

线圈功耗
Coil power consumption
(W)

动作时间
Operate Time
(mS)

释放时间
Release Time
(mS)

额定
Rated

最大
Max

5

6.5

100

3.75

0.25

0.25

≤15

≤5

9

11.7

325

6.75

0.45

12

15.6

575

9.00

0.60

24

31.2

2310

18.0

1.20

5

6.5

47

3.75

0.25

0.53

9

11.7

155

6.75

0.45

12

15.6

270

9.00

0.60

24

31.2

1080

18.0

1.20

技术特性 Operation condition

绝缘电阻 Insulation Resistance

最少 1000MΩ min(at500V)

介质耐压 Dielectric Strength
断开触点间 Between Contacts
触点与线圈间 Between Contacts and Coil

50Hz 1000V
50Hz  4000V

耐冲击 Shock Resistance

100m/s2   11ms

抗振性 Vibration Resistance

10~55Hz 双振幅 Double amplitude 1.5mm

引出端强度 Terminals Strength

10N

可焊性 Solderability

235±2℃   3±0.5s℃

环境温度 Ambient Temperature

-40~70℃

相当湿度 Relative Humidity

35%~85%(at 35℃)

质(重)量 Mass

12g

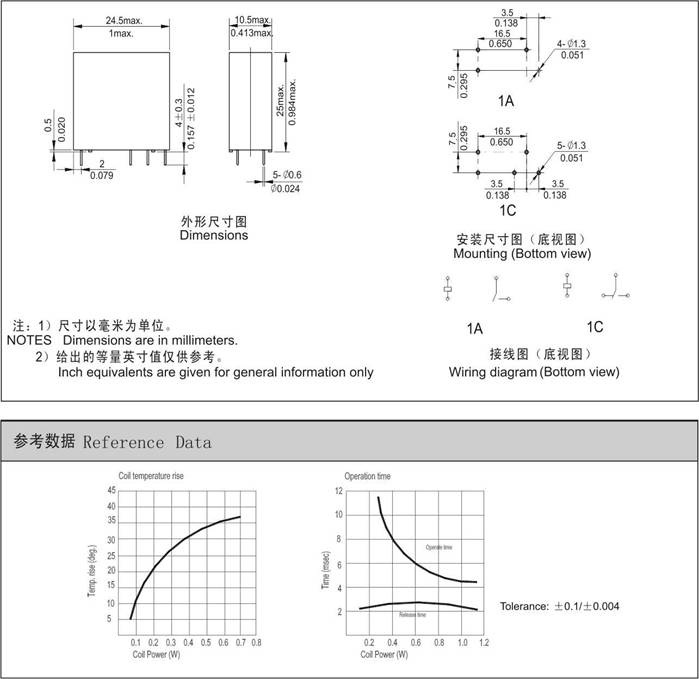

外形尺寸 Dimensions(mm/Inch)
